Servo-Drive Robot - TEM-Series

Concept

  • TEM is a versatile series of medium sized robots system that carries on our signature robust design philosophy. Now in its sixth generation, the latest TEM models feature advanced technology and come in two distinct configurations:
    TEM-SNC3P Series – Single-arm model

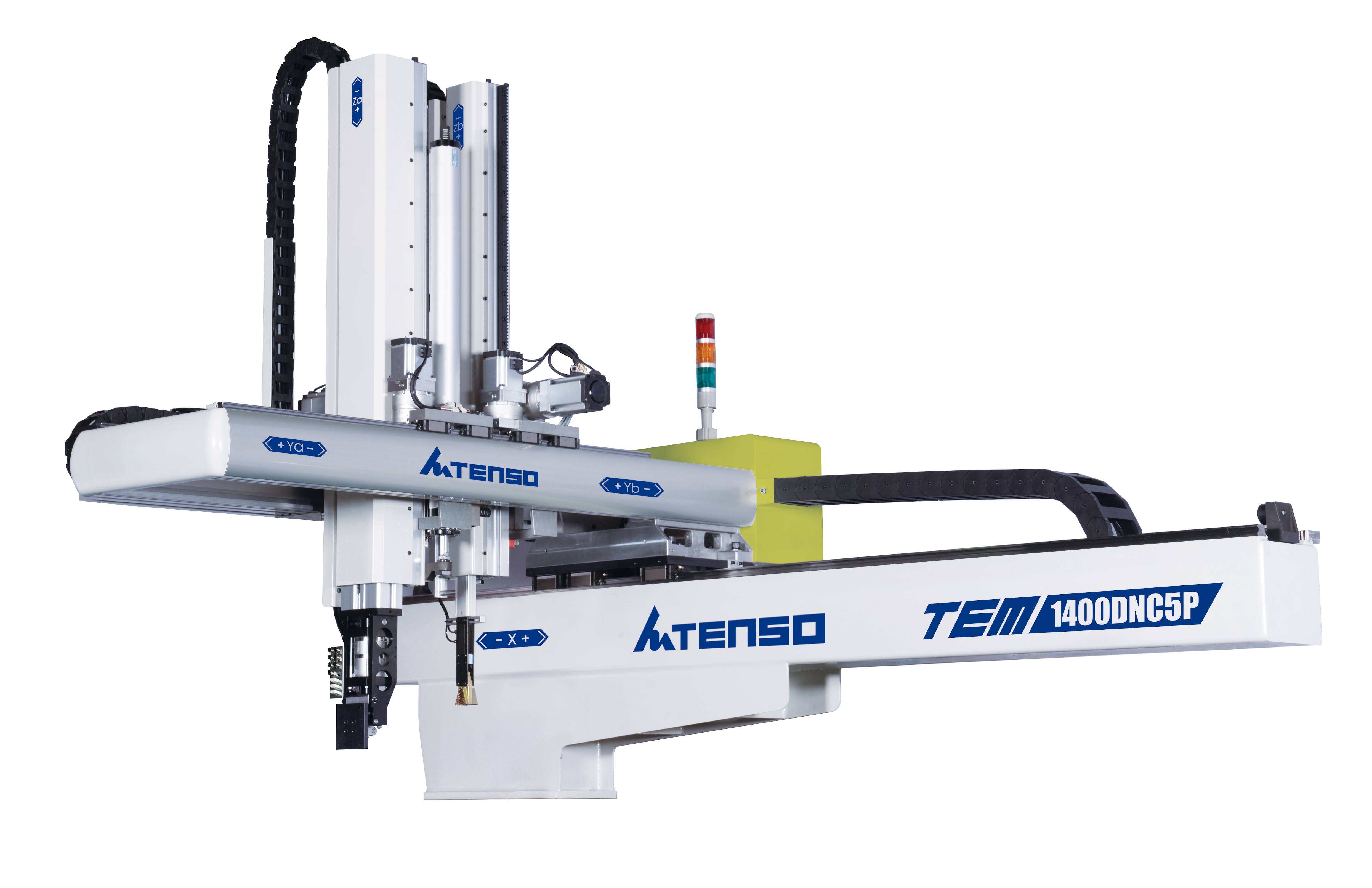

    TEM-DNC5P Series – Dual-arm model
  • Powered by the latest generation of Tenso technology, the TEM series features a telescopic vertical arm combined with Tenso’s proprietary air-cylinder load-balancing system — a fully self-developed structural design. This delivers greater performance stability and more flexible load capacity, making it the ideal choice for standard automation on 350 to 1300-ton injection molding machines. With our intuitive, in-house developed T-12 Controller, programming and operating the robot arm is incredibly easy — you’ll get the hang of it the moment you touch it.

Features

  • The entire robot system is built with high-performance TTS pinion and rack drive technology, effectively minimizing dust accumulation and wear, reducing downtime and maintenance costs, while significantly enhancing operational safety.
  • With built-in modular safety zones for foolproof protection, safety is always Tenso’s top priority. Foolproof design isn’t just a feature — it’s the result of years of experience and engineering know-how.
  • Tenso’s powerful program simulation function helps you edit smarter and detect potential issues before they happen.
  • A precision axial handwheel allows for ultra-fine manual adjustments — your secret weapon for mold tuning and machine setup.
  • The dual-bearing transmission system, known as Tenso’s proprietary E-Type Safety Structure, provides superior motion stability and eliminates any risk of tipping during operation.
  • Tenso’s unique air-cylinder load-balancing system is an advanced design we’re proud of. Acts as a counterbalance to relieve motor stress, extending motor lifespan significantly. When facing unexpected heavy-load situations, the system allows on-the-fly pressure adjustments — Allows instant increase of the robot arm's payload capacity without any mechanical modifications.
  • Sometimes, we all forget to perform maintenance — but not with Tenso.
    Our smart reminder system keeps you informed when it’s time for critical upkeep.

Add the selected model to inquiry

Model TEM-1000, TEM-1200, TEM-1400, TEM-1600, TEM-1800, TEM-2000
Model
Suited for injection molding machine 350 - 450 Tons 450 - 600 Tons 600 - 800 Tons 800 - 1000 Tons 1000 - 1300 Tons 1300 - 1500 Tons
(X axis) Traverse stroke (mm) 1,760 2,000 2,000 2,480 2,720 3,000
(X axis) Traverse stroke - Transmission TTS S S S S S S
(Y axis) Demold stroke (mm) 【SNC3P】760【DNC5P】P: 380，R: 150 【SNC3P】940【DNC5P】P: 560，R: 150 【SNC3P】940【DNC5P】P: 560，R: 150 【SNC3P】1,110【DNC5P】P: 730，R: 150 【SNC3P】1,110【DNC5P】P: 850，R: 150 【SNC3P】1,530【DNC5P】P: 1,150，R: 150
(Y axis) Demold stroke - Transmission TTS S S S S S S
(Z axis) Vertical stroke (mm) 【SNC3P】1,000【DNC5P】P: 1,000，R: 1,000 【SNC3P】1,200【DNC5P】P: 1,200，R: 1,200 【SNC3P】1,400【DNC5P】P: 1,400，R: 1,400 【SNC3P】1,600【DNC5P】P: 1,600，R: 1,600 【SNC3P】1,800【DNC5P】P: 1,800，R: 1,800 【SNC3P】2,000【DNC5P】P: 2,000，R: 2,000
(Z axis) Vertical stroke - Transmission TTS + steel reinforced belt S S S S S S
Max. load (Parts + E.O.A.T.) 8 kg
Vertical telescopic arm S S S S S S
Pneumatic rotation A axis 0- 90° (Wrist flip angle) S S S S S S
Pneumatic rotation B axis 0-180° O O O O O O
Pneumatic rotation C axis 0- 90° O O O O O O
Pneumatic rotation C axis 0-180° O O O O O O
Servo rotation A axis 0-90° + C axis 0-270° 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】-
Servo rotation B axis 0-180° 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】-
Loading Balance Mechanism S S S S S S
E-type safety structure S S S S S S
Vibration suppression control (VSC) S S S S S S
Electronic pressure switch O O O O O O
Combined vacuum and pressure circuit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Combined holding and pressure circuit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Combined gripper and pressure circuit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Part grip - kit of vacuum S S S S S S
Part grip - kit of holding S S S S S S
Embedded control cabinet S S S S S S
Ground control cabinet O O O O O O
Drive system Servo Motor
Power source 3 Phase, 220 V ± 10%, PE, 60 Hz
Air pressure 5 kg/cm2
Air consumption ℓ/min(ANR)(Pressure 0.5 MPa) 10→44ℓ/min(ANR)
Read More
"NC" : Numerical Control, and the robot is driven by servo motors.  "S" : Single arm. "D" : Dual arm.  "P" : Product arm.  "R" : Runner arm. “TTS” : Tenso rack and pinion Transmission System.

In the table, “S” : Standard.  “O” : Option.  “－” : Not available.

APPLICATION

Sprue Picker
