Servo-Drive Robot - TEH-Series

Concept

  • TEH is a versatile series of small size robot system that carries on our signature robust design philosophy. Now in its fourth generation, the latest TEH models feature advanced technology and come in two distinct configurations:

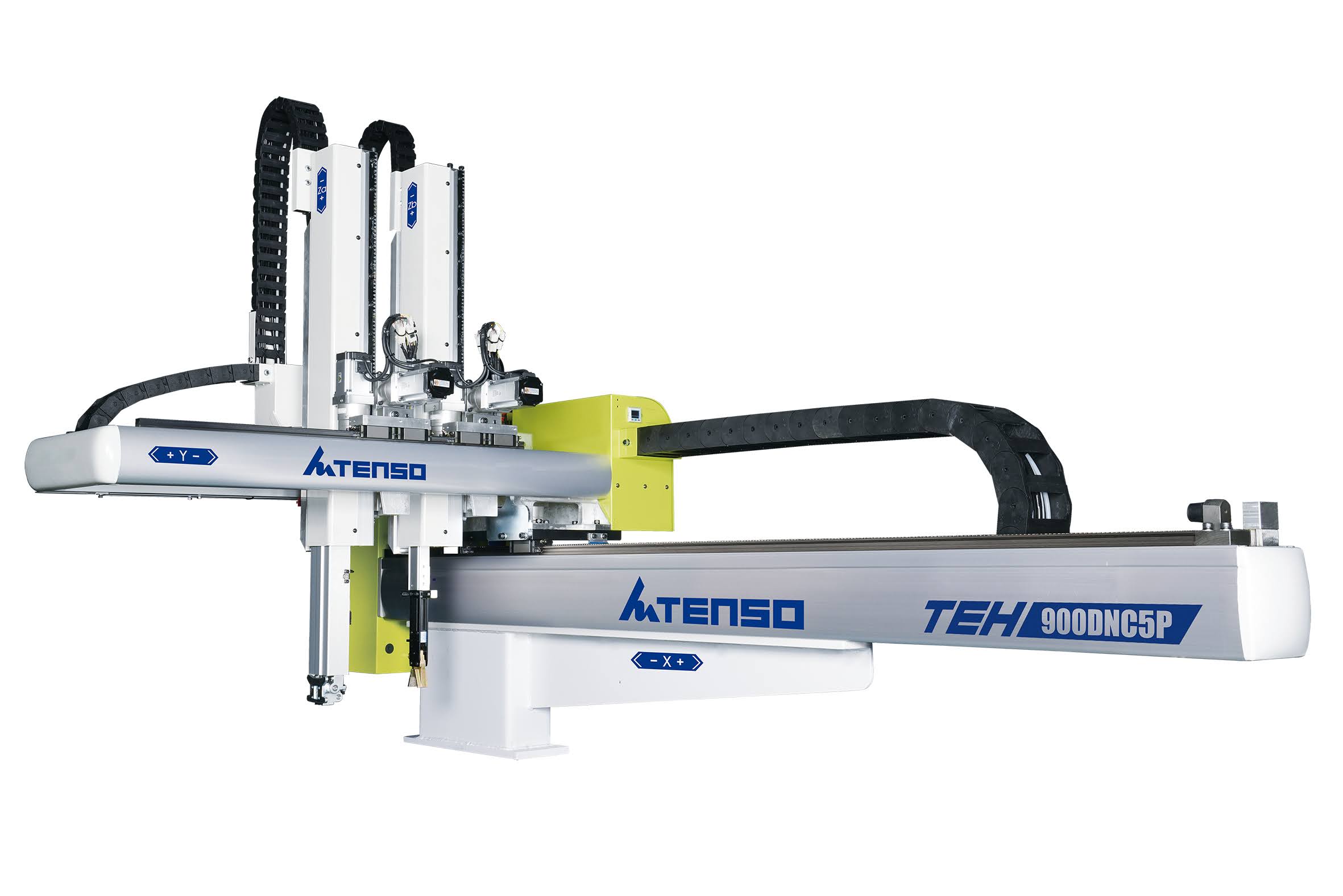

    TEH-SNC3P Series – Single-arm model
    TEH-DNC5P Series – Dual-arm model
  • Powered by the latest generation of Tenso technology, the TEH series features a telescopic vertical arm design, offering greater flexibility and adaptability across a wide range of applications, suited for standard automation on injection molding machines ranging from 50 to 550 tons. With our user-friendly, self-developed interface — the T-12 Controller — programming and operating the robot is incredibly straightforward, It’s also what we care about most.

Features

  • The entire robot system is built with high-performance TTS pinion and rack drive technology, effectively minimizing dust accumulation and wear, reducing downtime and maintenance costs, while significantly enhancing operational safety.
  • With built-in modular safety zones for foolproof protection, safety is always Tenso’s top priority. Foolproof design isn’t just a feature — it’s the result of years of experience and engineering know-how.
  • Tenso’s powerful program simulation function helps you edit smarter and detect potential issues before they happen.
  • A precision axial handwheel allows for ultra-fine manual adjustments — your secret weapon for mold tuning and machine setup.
  • The dual-bearing transmission system, known as Tenso’s proprietary E-Type Safety Structure, provides superior motion stability and eliminates any risk of tipping during operation.
  • The 3D-optimized structural design, paired with a lightweight full-aluminum extrusion body(TSPA), ensures high rigidity with reduced resonance during high-speed cycles. To top it off, the sleek brushed-metal surface finish adds a classic yet modern aesthetic.
  • Sometimes, we all forget to perform maintenance — but not with Tenso.
    Our smart reminder system keeps you informed when it’s time for critical upkeep.

Add the selected model to inquiry

Model TEH-600, TEH-700, TEH-800, TEH-900, TEH-1000, TEH-1200
Model
Suited for injection molding machine 50 - 125 Tons 125 - 180 Tons 180 - 250 Tons 250 - 350 Tons 350 - 450 Tons 450 - 550 Tons
(X axis) Traverse stroke (mm) 1,180 1,180 1,480 1,480 1,630 1,630
(X axis) Traverse stroke - Transmission TTS S S S S S S
(Y axis) Demold stroke (mm) 【SNC3P】430【DNC5P】P: 155,R: 100 【SNC3P】430【DNC5P】P: 155,R: 100 【SNC3P】610【DNC5P】P: 335,R: 100 【SNC3P】610【DNC5P】P: 335,R: 100 【SNC3P】830【DNC5P】P: 555,R: 100 【SNC3P】830【DNC5P】P: 555,R: 100
(Y axis) Demold stroke - Transmission TTS S S S S S S
(Z axis) Vertical stroke (mm) 【SNC3P】600【DNC5P】P: 600,R: 600 【SNC3P】700【DNC5P】P: 700,R: 700 【SNC3P】800【DNC5P】P: 800,R: 800 【SNC3P】900【DNC5P】P: 900,R: 900 【SNC3P】1000【DNC5P】P: 1000,R: 1000 【SNC3P】1200【DNC5P】P: 1200,R: 1200
(Z axis) Vertical stroke - Transmission TTS + steel reinforced belt S S S S S S
Max. load (Parts + E.O.A.T.) 5 kg
Vertical telescopic arm S S S S S S
Pneumatic rotation A axis 0- 90° (Wrist flip angle) S S S S S S
Pneumatic rotation B axis 0-180° O O O O O O
Pneumatic rotation C axis 0- 90° O O O O O O
Pneumatic rotation C axis 0-180° O O O O O O
Servo rotation A axis 0-90° + C axis 0-270° 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】-
Servo rotation B axis 0-180° 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】- 【SNC3P】O【DNC5P】-
E-type safety structure S S S S S S
Vibration suppression control (VSC) S S S S S S
Electronic pressure switch O O O O O O
Combined vacuum and pressure circuit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Combined holding and pressure circuit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Combined gripper and pressure circuit 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Part grip - kit of vacuum S S S S S S
Part grip - kit of holding S S S S S S
Compact end-of-beam control cabinet S S S S S S
Ground control cabinet O O O O O O
Drive system Servo Motor
Power source 3 Phase, 220 V ± 10%, PE, 60 Hz
Air pressure 5 kg/cm2
Air consumption ℓ/min(ANR)(Pressure 0.5 MPa) 10→44ℓ/min(ANR)
Read More
"NC" : Numerical Control, and the robot is driven by servo motors.  "S" : Single arm. "D" : Dual arm.  "P" : Product arm.  "R" : Runner arm. “TTS” : Tenso rack and pinion Transmission System.

In the table, “S” : Standard.  “O” : Option.  “-” : Not available.
